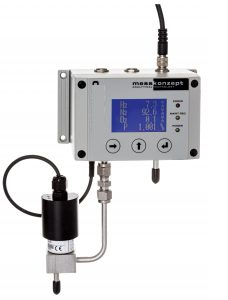

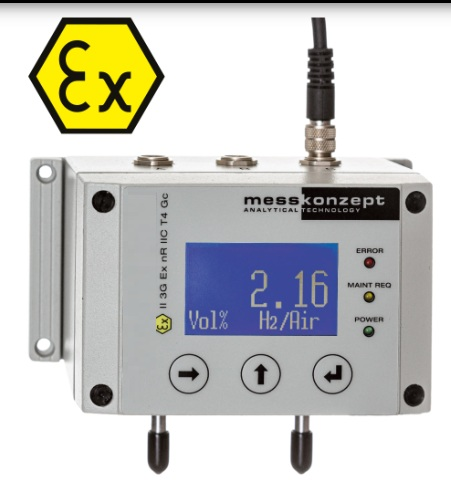

在线氦气纯度检测(He/N2,H2/AIR)

外接O2传感器对测量参数进行补偿：

以下为可选测量气体及

Measuring Gas	Carrier Gas	Basis Range	Smallest Range	Smallest Suppressed Zero Range
Hydrogen (H2)	Nitrogen (N2) or Air	0% – 100%	0% – 0.5%	98% – 100%
Oxygen (O2)	Nitrogen (N2)	0% – 100%	0% – 15%	85% – 100%
Helium (He)	Nitrogen (N2) or Air	0% – 100%	0% – 0.8%	97% – 100%
Carbon dioxide (CO2)	Nitrogen (N2) or Air	0% – 100%	0% – 3%	96% – 100%
Nitrogen (N2)	Argon (Ar)	0% – 100%	0% – 3%	97% – 100%
Oxygen (O2)	Argon (Ar)	0% – 100%	0% – 2%	97% – 100%
Hydrogen (H2)	Argon (Ar)	0% – 100%	0% – 0.4%	98% – 100%
Helium (He)	Argon (Ar)	0% – 100%	0% – 0.5%	98% – 100%
Carbon dioxide (CO2)	Argon (Ar)	0% – 60%	0% – 10%	90% – 100%
Argon (Ar)	Carbon dioxide (CO2)	40% – 100%	0% – 10%	60% – 100%
Methane (CH4)	Nitrogen (N2) or Air	0% – 100%	0% – 2%	97% – 100%
Methane (CH4)	Argon (Ar)	0% – 100%	0% – 1.5%	97% – 100%
Argon (Ar)	Oxygen (O2)	0% – 100%	0% – 3%	96% – 100%
Nitrogen (N2)	Hydrogen (H2)	0% – 100%	0% – 2%	99.5% – 100%
Oxygen (O2)	Carbon dioxide (CO2)	0% – 100%	0% – 3%	96% – 100%
Hydrogen (H2)	Helium (He)	20% – 100%	20% – 40%	85% – 100%
Hydrogen (H2)	Methane (CH4)	0% – 100%	0% – 0.5%	97% – 100%
Hydrogen (H2)	Kohlendioxid (CO2)	0% – 100%	0% – 0.5%	98% – 100%
Sulfur hexafluoride(SF6)	Nitrogen (N2) or Air	0% – 100%	0% – 2%	96% – 100%
Nitrogen dioxide (NO2)	Nitrogen (N2) or Air	0% – 100%	0% – 5%	96% – 100%
Hydrogen (H2)	Sauerstoff (O2)	0% – 100%	0% – 0.8%	97% – 100%
Argon (Ar)	Xenon (Xe)	0% – 100%	0% – 3%	99% – 100%
Neon (Ne)	Argon (Ar)	0% – 100%	0% – 1.5%	99% – 100%
Krypton (Kr)	Argon (Ar)	0% – 100%	0% – 2%	96% – 100%
Extinguishing gas (R125)	Nitrogen (N2) or Air	0% – 100%	0% – 5%	96% – 100%
Deuterium (D2)	Nitrogen (N2) or Air	0% – 100%	0% – 0.7%	97% – 100%
Deuterium (D2)	Helium (He)	0% – 100%	0% – 5%	40% – 100%
